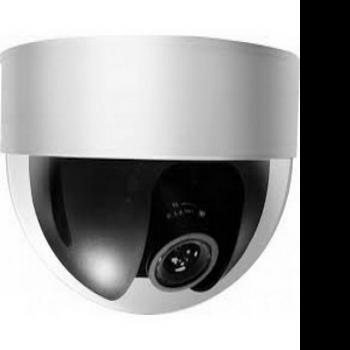

AVC489
| Sensor | 1/3" H.R. With Sony Effio-E |
| Number of Pixels | 768(H)*494(V) / 752(H)*582(V) |
| Min. Illumination | 0.05 Lux / F1.4 |
| S/N Ratio | More than 48dB (AGC off) |
| Electronic Shutter | 1/60 (1/50) to 1/100,000 sec. |
| Lens | f3.8mm ~ f9.5mm |
| IRIS Mode | AI(Default) / AES |
| IR LED | N/A |
| IR Effective Distance | N/A |
| IP Rating | N/A |
| Video Output | 1.0 Vp-p composite, 75Ω |
| Power Source (±10%) | DC12V |
| Current / Power consumption (±10%) | 75mA |
| Dimensions (mm) | 124.3(Ø) x 92(H) |
